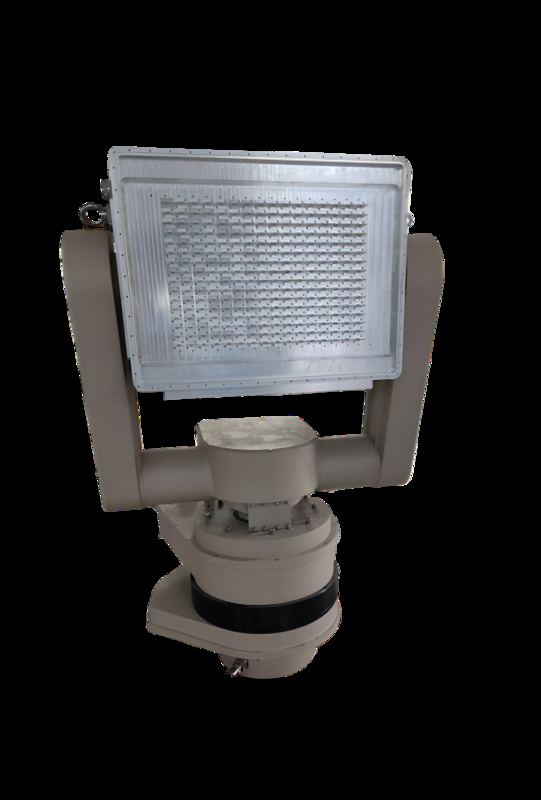

25km multi-target full airspace coverage low altitude surveillance radar

Name: 25km multi-target full airspace coverage low altitude surveillance radar
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXR-XD101
Availability: InStock

製品の詳細:

ブランド名:	Lei Kan
モデル番号:	LKXR-XD101

詳細情報

ブランド名:

Lei Kan

モデル番号:

LKXR-XD101

長距離検出:

≥25km rcs =1m²/ ≥8km（0.01m²

軽量のモビリティ:

55 kg未満で、車両に取り付けられたり、展開を固定したりできます

迅速な展開:

自分でセットアップするには10分かかります

完全な空気カバレッジ:

柔軟なブラインドフィリングのために電動スキャンとマシンスキャンを混ぜる

ハイライト:

High Light

ハイライト:

25km low altitude surveillance radar

multi-target low altitude radar

full airspace coverage radar

取引情報

最小注文数量:

支払条件:

L/C、D/A、D/P、T/T、Western Union、MoneyGram

製品説明

Ⅰ. Overview

The X-band 2D AESA radar is a 2D active phased array (AESA) three-coordinate radar with a full solid-state, fully phased and modular design. It can simultaneously complete high-speed target detection, tracking and positioning, and is suitable for key area air defense, border monitoring and battlefield reconnaissance missions.

Ⅱ. Highlights

3D Positioning: Azimuth/Pitch electric scanning + 360° mechanical scanning, no blind spots in airspace
Multi-target: ≥200 real-time flight paths, supports high-speed targets 0.8–100 m/s
Long-range detection: ≥25 km (RCS=1 m²) / ≥8 km (0.01 m²)
Lightweight mobility: ≤55 kg, vehicle-mounted or fixed deployment
High reliability: fully solid-state, long MTBF, minimal maintenance required.

Ⅲ. Specifications

Parameter	Value
Radar type	2-D AESA
Frequency band	X-band
Scan coverage	e-scan: az ±15.5° el ±30°
Scan coverage	m-scan: az 0-360° el 0-90°
Antenna speed	≤10 rpm
Detection range	≥8 km (0.01 m²) / 15.5 km (0.1 m²) / 25 km (1 m²)
Blind range	240 m
Range res./accuracy	15 m / ≤20 m
Azimuth res./accuracy	≥5° / ≤0.8°
Elevation res./acc.	≥9° / ≤0.8°
Radial velocity	0.8–100 m/s
Max tracks	≥200
Transmit power	256 W
Size / Weight	≤686×411×145 mm / ≤55 kg

Ⅳ. Features

Full air coverage: electric sweeping and machine sweeping mixed, flexible blind spot suppression.
Strong clutter suppression: built-in multiple anti-clutter algorithms, suitable for urban and mountain areas.
Rapid deployment: modular structure, single person can complete the setup in 10 minutes.
Low power consumption: DC 28V/48V power supply, also can be driven by field batteries
