| ブランド名: | LeiKan |
| モデル番号: | LKST-H1C |

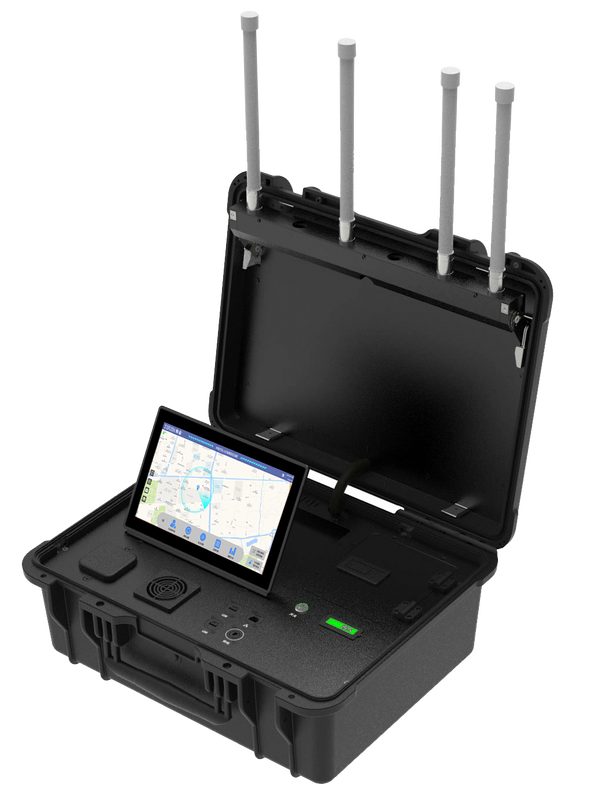

The H1C is abriefcase-style portable drone detection devicedesigned for drone monitoring missions. The device captures multi-dimensional drone information in real time, including:
· Identity Information: SN code, model
· Location Information: Longitude/latitude, azimuth, distance
· Flight Status: Speed, height, altitude, home point
· Pilot Information: Controller location (longitude/latitude, azimuth, distance)
The H1C supportsoffline/online dual-mode operationwith touch screen control. It is easy to carry, quick to deploy, and ready to use out of the box.
|
Scenario |
Description |
|
Routine Patrols |
Regular inspections of key areas, timely detection of "black flight" targets |
|
Critical Asset Protection |
Low-altitude defense for sensitive areas such as airports, nuclear power plants, and government facilities |
|
Large Event Security |
Aerial security for temporary events such as competitions and conferences |
|
Field Operations |
Reliable operation even in environments without network coverage |
|
Item |
Specification |
|
Operating Mode |
Passive RF sensing (passive detection) |
|
Detection Frequency Bands |
900 MHz / 1.2 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz |
|
Swarm Detection |
Simultaneous detection of ≥10 drones |
|
Detection Range |
1 - 10 km (varies by environment and drone model) |
|
Device Dimensions |
520 mm × 415 mm × 224 mm (L × W × H) |
|
Battery Life |
Approximately 4 hours (at 20℃ ambient temperature) |
|
Operating Temperature |
-20℃ ～ +65℃ |
|
Protection Rating |
IP65 (case closed) |
|
Advantage |
Description |
|
Briefcase Design |
Integrated portable case, grab-and-go, ready to use immediately |
|
Passive Detection |
No signal emission, strong concealment, suitable for sensitive areas |
|
Simultaneous Multi-Target Tracking |
Supports parallel detection and display of 10+ drones |
|
Strong Environmental Adaptability |
IP65 protection, wide temperature operation from -20℃ to +65℃ |
|
Flexible Deployment |
Supports offline/online dual modes, usable in network-free environments |
